Quick Answer

Box dimensions should be communicated as Length × Width × Height.

For product fit and inserts, use internal dimensions. For shipping cost, carton loading and courier pricing, use external dimensions.

Introduction

Why accurate box measurement matters in custom packaging

A few millimeters can change the result of a custom packaging project. If the box is too small, the product may not fit. If the box is too large, the product may move during shipping, the insert may look loose and the brand presentation may feel less premium.

For bespoke packaging, accurate measurement helps the factory create the right dieline, choose suitable board thickness, design the insert, estimate material cost and avoid repeated sample revisions.

01 · Standard Measurement

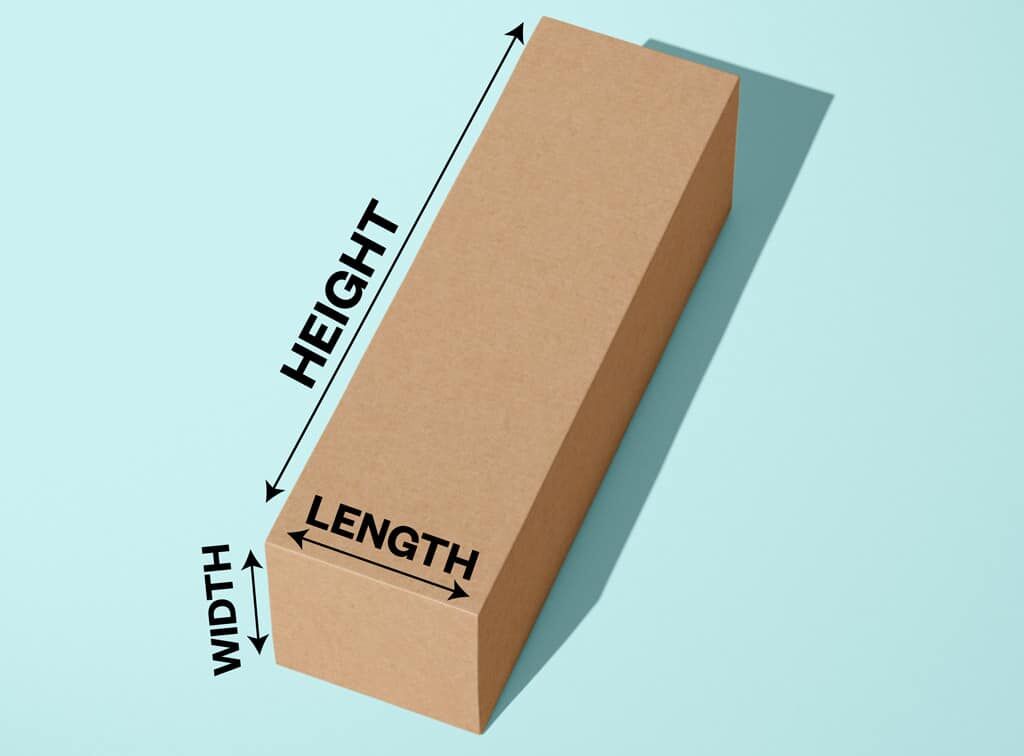

Always measure a box in the order of Length × Width × Height

Using the same measurement order prevents communication errors between your design team, purchasing team and packaging factory.

Length

Length is usually the longest side of the box opening. For rectangular boxes, this is the first number you should provide.

Width

Width is usually the shorter side of the box opening. It helps the factory understand the footprint of the product and inner tray.

Height

Height is the vertical distance from the opening to the base. For lid-and-base boxes, magnetic boxes and rigid boxes, height affects product clearance and insert depth.

Recommended format

Write dimensions like this: 180 × 120 × 60 mm. Always add the unit, such as mm, cm or inches.

02 · Internal vs External

Internal dimensions and external dimensions serve different purposes

One of the most common mistakes is sending external box dimensions when the supplier needs internal product-fit dimensions, or sending internal dimensions when the logistics team needs shipping size.

Internal dimensions

Internal dimensions refer to the usable space inside the box.

Best for: product fit, inserts, trays, bottle cavities, gift sets, cosmetic boxes, perfume boxes, chocolate boxes and jewelry boxes.

External dimensions

External dimensions refer to the full outer size of the box after production.

Best for: shipping cartons, courier pricing, warehouse storage, pallet loading, export packing and dimensional weight calculation.

Buyer tip

When requesting a quote, send both product dimensions and target box dimensions if possible. This allows the factory to recommend the correct inner space, board thickness and insert design.

03 · Step-by-Step Guide

How to measure a custom packaging box correctly

04 · Box Type Differences

Different packaging structures require different measurement attention

Do not measure every box the same way without considering structure. A drawer box, magnetic box, tube box and folding carton may all need different measurement notes.

Rigid lid-and-base boxes

Measure the base internal size for product fit. If the lid covers the base deeply, also confirm lid height and overall closed box height.

Drawer boxes

Measure the inner tray size, outer sleeve size and pull-out clearance. A drawer that is too tight can affect user experience.

Magnetic closure boxes

Measure the usable inner space, flap thickness, magnetic closure position and product clearance after the lid is closed.

Tube boxes

Measure diameter and height instead of length and width. For paper tubes, confirm inner diameter, outer diameter and cap height.

Folding cartons

Measure the assembled inner size and confirm tuck flap direction, glue flap position and board thickness before creating the dieline.

05 · Insert & Product Fit

Product dimensions are just as important as box dimensions

For premium packaging, the insert is often the part that decides whether the product feels secure, organized and luxurious. To design a correct insert, the factory needs accurate product measurements.

06 · Cost Impact

Correct measurement can reduce material waste and shipping cost

Oversized packaging may look harmless at the sample stage, but it can increase board usage, insert cost, carton volume, dimensional weight and warehouse space.

Material cost

A larger box uses more greyboard, wrapping paper, glue, insert material and carton space. Right-sizing helps control unit cost.

Shipping cost

Couriers and freight carriers often consider external size and dimensional weight. A box that is too large may increase shipping charges even if the actual product is light.

Storage efficiency

Well-measured packaging helps brands improve carton loading, pallet layout, warehouse storage and retail backroom handling.

Sustainability value

Smaller and more accurate boxes can reduce paper waste, insert waste, transport space and unnecessary packaging materials.

07 · Common Mistakes

Avoid these box measurement mistakes before requesting a quote

Many packaging delays happen because the first size information was incomplete, unclear or measured from the wrong reference point.

Sending product size as box size

The product size is not the same as the final box size. The box must include clearance, insert space, board thickness and opening structure.

Confusing internal and external dimensions

Always label whether your measurement is internal size or external size. This is especially important for rigid boxes and shipping cartons.

Forgetting the insert thickness

EVA, foam, paperboard, molded pulp and blister trays all take up space. The product cavity must be designed together with the box size.

Ignoring board thickness

Rigid boxes use thick greyboard, so the difference between inner and outer size can be significant. This must be calculated before production.

Using unclear units

Never send only numbers. Always include units such as mm, cm or inches, and keep the same unit throughout the project.

08 · GPLPAK Support

How GPLPAK helps brands measure and develop custom packaging

GPLPAK supports custom paper packaging projects from product measurement and structure planning to sampling, insert testing, production and export packing.

Project Checklist

Checklist before sending box dimensions to a supplier

What is the correct order for box dimensions?

The correct order is Length × Width × Height. This order should be used consistently when communicating with a packaging supplier.

Should I provide internal or external dimensions?

Provide internal dimensions for product fit and insert design. Provide external dimensions for shipping, carton loading and logistics cost estimation.

How much clearance should I leave around the product?

The clearance depends on product material, insert type, box structure and shipping risk. Fragile glass bottles usually need more secure insert support than flat paper products.

Why does board thickness matter?

Rigid paper boxes use thick greyboard, so the outer size will be larger than the inner usable space. Board thickness affects structure, product fit and shipping size.

Do I need a sample after confirming dimensions?

Yes. A white sample or printed sample helps confirm size, product fit, insert accuracy, opening experience, surface finish and carton packing before mass production.
